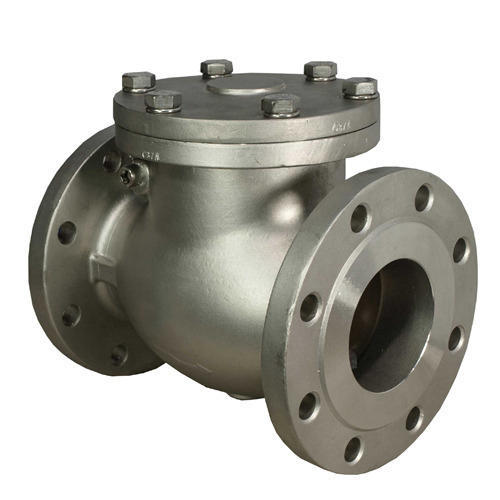

Model K41: CHECK VALVE / NON RETURN VALVE, Flange End (PN10, PN16)

Design Std. As per API 602 / ASME B16.34
Testing Std. As per API 598
End Connection Flanged End
Size 30 mm to 300 mm, PN10 / PN16

Dimensions PN10

Size Dia D L A
30 140 180 30
40 150 180 40
50 165 200 50
65 185 240 65
80 200 260 80
100 220 300 100
125 250 350 125
150 285 400 150
200 340 500 200
250 395 600 250
300 445 700 300

Dimensions PN16

Size Dia D L A
30 140 180 30
40 150 180 40
50 165 200 50
65 185 240 65
80 200 260 80
100 220 300 100
125 250 350 125
150 285 400 150
200 340 500 200
250 405 600 250
300 460 700 300

All dimensions are in mm.

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
