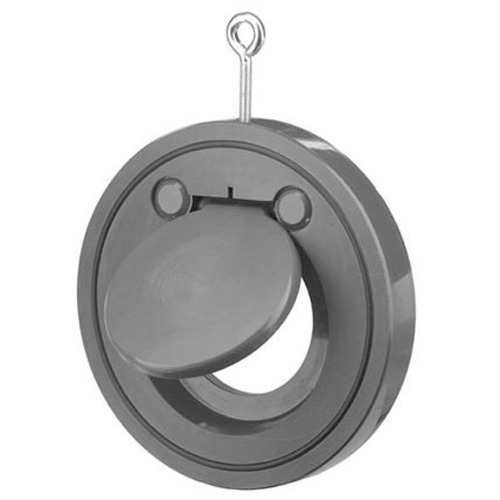

Model K43: Sandwich Type Non Return Valve (PN10 , PN16)

Design Std. As per API 6D
Testing Std. As per EN-12266-1
End Connection ANSI B16.5(150#), B16.47(300#)
Size 30 mm to 300 mm, PN10 / PN16

Dimensions PN10

Size Dia A Dia B L
30 16 84 16
40 22 94 16
50 30 109 16
65 37 129 16
80 48 144 16
100 70 164 16
125 95 194 18
150 121 220 19
200 155 275 29
250 196 330 29
300 230 380 38

Dimensions PN16

Size Dia A Dia B L
30 16 84 16
40 22 94 16
50 30 109 16
65 37 129 16
80 48 144 16
100 70 164 16
125 95 194 18
150 121 220 19
200 155 275 29
250 196 331 29
300 230 386 38

All dimensions are in mm.

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
