BUTTERFLY VALVE
EPDM & EPDM + PTFE seated Centric design

Model K61-W: Wafer type & Model K62-L: Lug type

Applications : Food and beverages, slurries, pneumatic conveying, dry bulk conveying, chemicals, paper stock, mineral processing.
This type of valve is highly suitable where bubble-tight shut off with maximum flow area is required.

Suitable for on-off and control services

Range and Features :

Type Design Pressure Seat Flange Suit To 2" to 20"
Wafer Centric Bi-directional PN10, PN16 EPDM, PTFE + EPDM ANSI 150#, PN10, PN16, BS Table
Lug Centric Bi-directional PN10, PN16 EPDM, PTFE + EPDM ANSI 150#, PN10, PN16, BS Table

Design, Manufacturing and Testing Standards – Technology at a Glance

Kansei EPDM and PTFE Centric Bi-directional Butterfly valves are designed to ensure a bubble tight shut off in both direction and provide a Maximum flow area.
“A major advantage of Kansei product is an International compatibility.”

The Exclusive Design of two-piece body with one-piece wafer-thin disc stem provide the very less obstruction to flow. Body locating holes provide easy placing and perfect centering of the valve between the flanges.

Rounded & Buffed disc edge gives full concentric sealing with lower torque, which gives longer seat life.

Kansei designed Primary stem sealing accomplished by a preinstalled contact between seat surface and rounded disc hub area which overtake the pressure rating of valve and prevents the leakage through the stem area to atmosphere.

An inbuild ‘O’ ring on the seat surface provide flange sealing and eliminates the need for additional flange gasket.

The seat is completely field replaceable and isolated from line media which allows superior performance of valve with extended service life. The seat design in such a way to ensure seal drop-tight and bi-directional at low to high pressure range.

Split body for easy maintenance.

This product is not recommended for dead end services.

This type of valve can be installed in vertical or horizontal pipeline and any intermediate orientation.

  • Design standard as per EN 593/BS 5155 as standard, another applicable standard on request.
  • Testing standard as per API 598 or EN 12266-1 as standard.
  • Certificate EN10204 Type 3.1 as standard & Manufacturing under Quality system ISO 9001: 2015.
  • Casting inspection as per MSS-SP-55 as standard. Another applicable standard on request.
  • Trims available with combination of various Casting material like CI/ DI/ WCB/ CF8/ CF8M/ CF3M/ GR. 4A-5A/ etc. and Seat Material like EPDM / EPDM+PTFE etc.
  • 100% factory tested (Hydro, Pneumatic) and Inspected valves as per standard.

Valve Operations :

TECHNICAL DATA

Model K61 W - Size: 2” (50 mm) to 20” (500 mm)

Model K62 L - Size: 2” (50 mm) to 20” (500 mm)

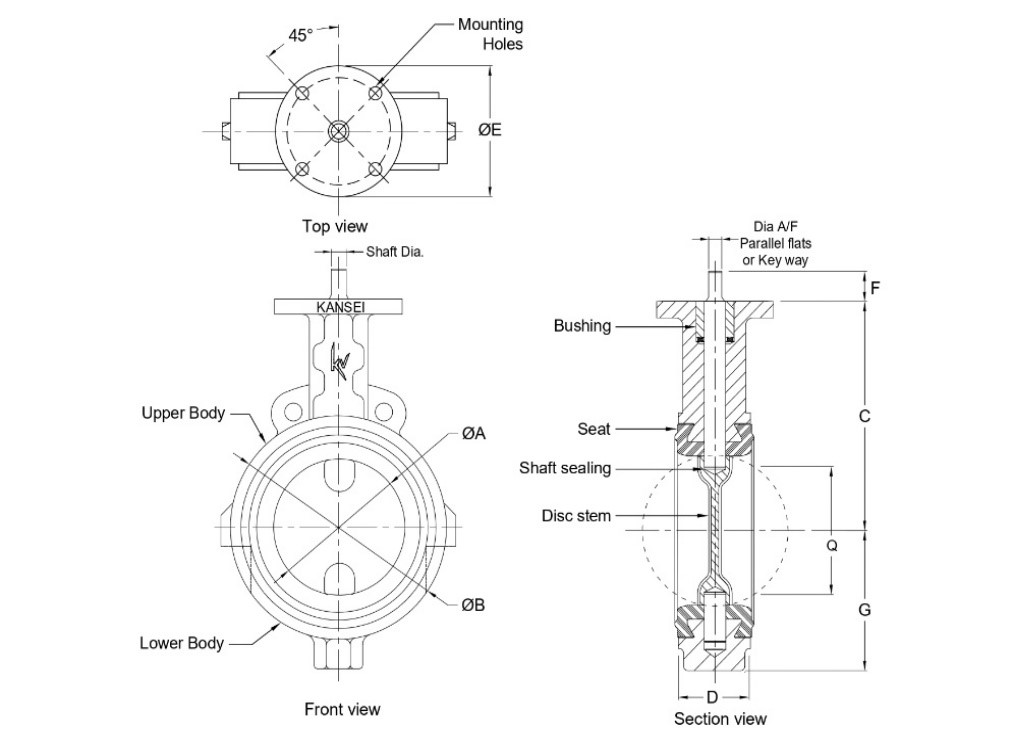

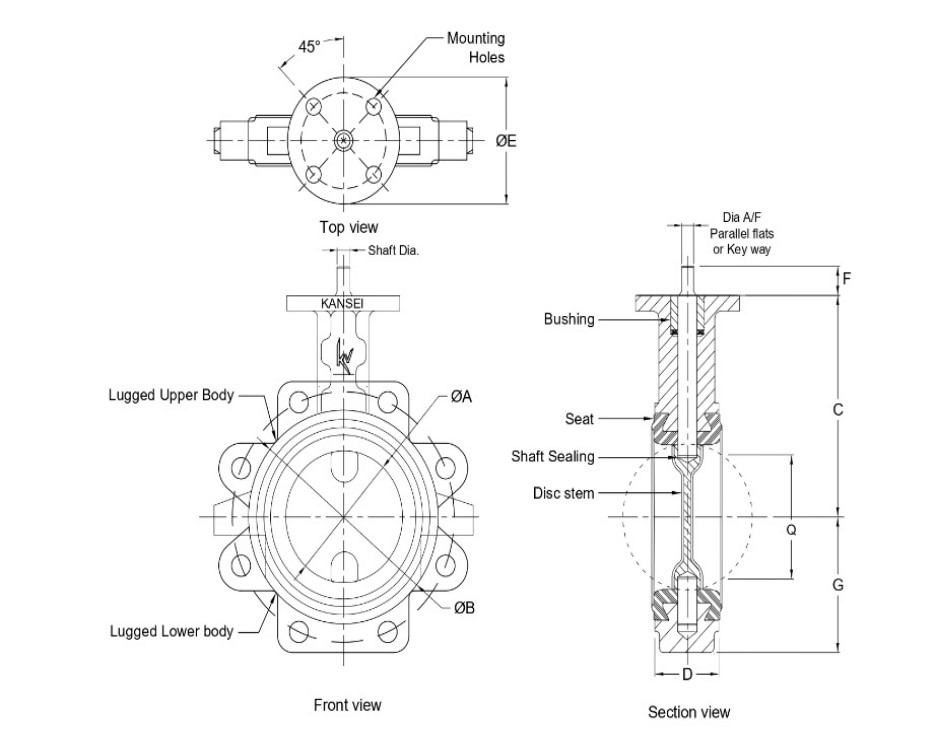

Dimensions(Wafer & Lugged)

Valve Size Shaft Dia A B C D E F G Q
50 14.28 52 105 141 41 102 32 70 32
65 14.28 65 117 151 44 102 32 76 48
80 14.28 78 130 160 44 102 32 88 65
100 15.9 103 162 177 51 102 32 102 90
125 19.05 129 187 190 54 120 32 119 118
150 19.05 148 216 204 54 120 32 133 138
200 22.25 198 271 242 64 152 32 170 188
250 28.58 249 330 271 64 152 51 210 241
300 28.58 300 375 313 76 152 51 238 291
350 28.58 339 429 304 76 152 76 248 331
400 41.28 390 489 337 102 152 69 279 377
450 47.64 441 546 369 108 203 108 314 428
500 54 491 603 402 127 203 108 349 475
Mounting Flange Appx. Weight in Kgs
Valve Size PCD NO. OF HOLES HOLE DIA Wafer Lugged
50 83 4 11 2.8 3.1
65 83 4 11 3.5 4.5
80 83 4 11 4.3 4.6
200 125 4 14 46 3.5
100 83 4 11 5.2 7.5
125 83 4 11 7 10.1
150 83 4 11 8 11
200 127 4 14 14.2 19.1
250 127 4 14 20 29.2
300 127 4 14 35.3 49.1
350 127 4 14 48 65
400 127 4 14 81.9 107.5
450 165 4 21 101.1 118.2
500 165 4 21 142.5 167

All dimensions are in mm.

Features and Benefits :

  • All dimensions are in mm and subject to change.
  • Valve shape is for reference only.
  • Q is the disc chordal dimension at valve face for disc clearance into pipe of equipment.
  • Weight mentioned for bare shaft valve only and depends upon material used in valve.
  • Actuator/Gearbox mounting flange is standardizedas per ISO 5211.
  • Lugged body has drilled and tapped (matric or imperial) options as per ANSI, PN10 & PN16
  • Operating with Lever, Gear, Pneumatic, Electric etc.

General Notes :

    • Customization and Automation as per customer requirements.
    • Certificate of compliance to EN10204 Type 3.1 as standard.
    • Safety stock as per customer requirements.
    • 100% factory tested and inspected valves as per standard.
    • Other trims also available as per customer requirements.
    • Support to customers for other product requirements from sources.
    • Consult to Factory for Torque and Other Details.
