Model K91: Y-Type Strainers (ANSI 150#, 300#)

Design Std. As per ASME B16.34
Testing Std. As per API 598
End Connection Flanged End as per ANSI B16.5, F to F as per ANSI B16.10
Shell Wall Thickness As per ANSI B16.34
Size 150# & 300# 50 mm to 300 mm (2” to 12”)
Standard Trims WCB / CF8M, Mesh : SS

Applications:

Strainer can be used in liquid as well as gas line, Regulator and valve protection, steam traps protections, flow meter and pump protections, heat exchanger and refrigeration set protection, Suitable for Hazardous environments.

Y-Strainers and pot basket type strainers is a device for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap

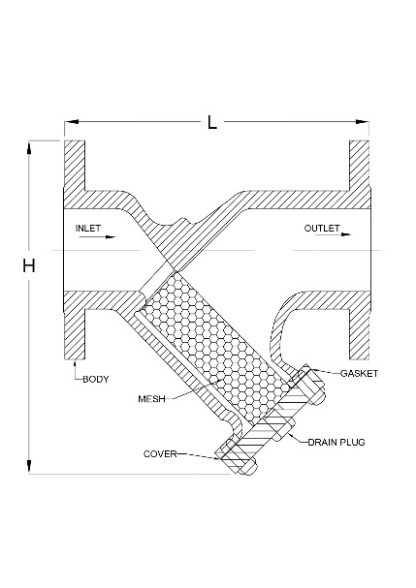

Dimensions 150#

Size ~L ~H
50 225 190
80 315 270
100 370 305
150 470 400
200 600 490
250 695 670
300 810 800

Dimensions 300#

Size ~L ~H
50 270 190
80 320 270
100 355 305
150 450 400
200 560 490
250 730 670
300 850 800

All dimensions are in mm.

General Notes :

  • Customization and Automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
