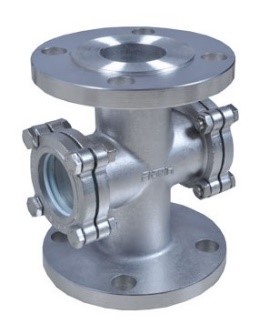

Model K95: Double Window Sight Glass (PN10, PN16)

Design Std. As per BS 5352
Testing Std. As per API 598
End Connection As per ANSI B16.5
Size 1/2” to 6” (15 mm to150 mm)
Size 2" to 18", Class 150, 300
Pressure rating PN10 / PN16
Maximum working pressure 10 Kg/cm2
Test pressure 20 Kg/cm2

Applications:

Industrial facilities, oil refineries, bath soap manufacturing plane, gas industries, petrochemical complex, high viscous process media, building construction, environmental water treatments, synthetics, plastic and resin industries, polymer manufacturing plant, food industries (chocolate, sauce etc.), fertilizer industries etc.

Dimensions

Size A B C
15 153 51 137
20 153 51 137
25 153 51 137
40 178 64 146
50 190 76 190
75 229 102 232
100 299 127 283
150 406 191 368

All dimensions are in mm.
