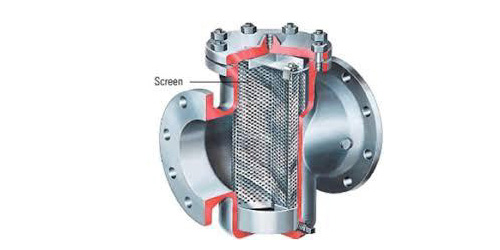

Model K92: POT-BASKET TYPE STRAINER (ANSI 150#, 300#)

Design Std. As per ASME B16.34
Testing Std. As per API 598
End Connection Flanged Drill as per ANSI B16.5
Material Body : IS 2062, Seal : NBR / PTFE / Graphite + SS, Mesh : SS
Shell Wall Thickness As per ANSI B16.34
Size 2" to 18", Class 150, 300

Applications:

Strainer can be used in liquid as well as gas line, Regulator and valve protection, steam traps protections, flow meter and pump protections, heat exchanger and refrigeration set protection, Suitable for Hazardous environments.

Y-Strainers and pot basket type strainers is a device for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap.

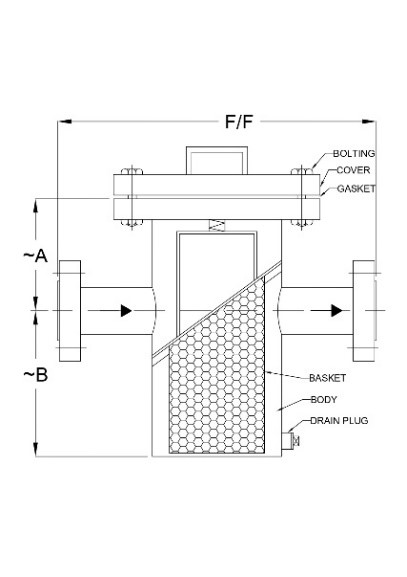

Dimensions 150#

Size F/F A B
50 320 190 285
80 360 200 320
100 400 210 360
125 460 230 430
150 510 240 430
200 560 280 530
250 810 420 635
300 890 430 715

Dimensions 300#

Size F/F A B
50 380 200 305
80 420 235 400
100 475 260 405
125 510 275 435
150 620 295 490
200 630 345 560
250 900 390 690
300 1000 440 770

All dimensions are in mm.

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
