Our Products

K96 - Full View Sight Glass (PN10)

Design Std. As per BS 5352
Testing Std. As per API 598
End Connection As per ANSI B16.5
Size ½” to 4” (15 mm to100 mm)
Pressure rating PN10
Maximum working pressure 10 Kg/cm2
Test pressure 15 Kg/cm2

Applications:

Industrial facilities, oil refineries, bath soap manufacturing plane, gas industries, petrochemical complex, high viscous process media, building construction, environmental water treatments, synthetics, plastic and resin industries, polymer manufacturing plant, food industries (chocolate, sauce etc.), fertilizer industries etc.

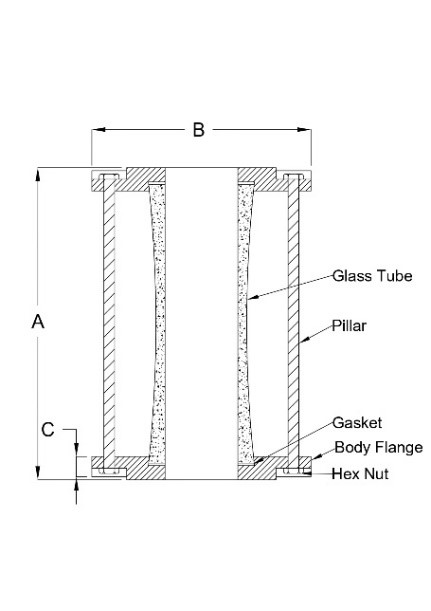

Dimensions

Size A B C
15 153 51 137
20 153 51 137
25 153 51 137
40 178 64 146
50 190 76 190
75 229 102 132
100 299 127 283

All dimensions are in mm.
