PFA/PTFE Lined Centric Bi-directional BUTTERFLY VALVES Wafer, Lug and Flange PN10, PN16

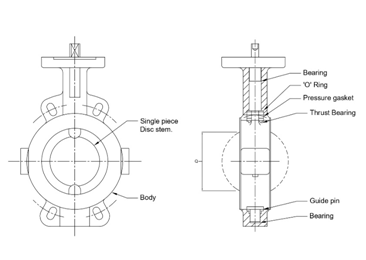

Model K51 W - Size: 2” (50 mm) to 12” (300 mm) :

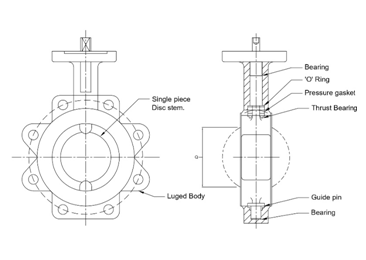

Model K52 L - Size: 2” (50 mm) to 12” (300 mm) :

Model K53 F - Size: 14” (350 mm) to 16” (400 mm) :

Features and Benefits :

  • Actuator/Gearbox mounting flange is standardised as per ISO 5211.
  • Lugged body has drilled and tapped (matric or imperial) options as per ANSI, PN10 and PN16.
  • Seat is Provides maximum abrasion, wear resistance and a high impact resistance.
  • Valve is suitable to sandwich between ASME B16.5 and 150# flanges.
  • Operating with Lever, Gear, Pneumatic, Electric etc.
  • Consult to Factory for Torque and other details.
  • Customization and trims as per customer requirement.
  • Valve shape is for reference only.
  • Valve shape is for reference only.
  • Q is the disc chordal dimension at valve face for disc clearance into pipe of equipment.
  • Actuator mounting flange is in accordance to ISO 5211.
  • Automation as per customer requirement.
  • Consult to factory for other information.

General Notes :

  • Customizaticn and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customes for other project requirements from sources.
