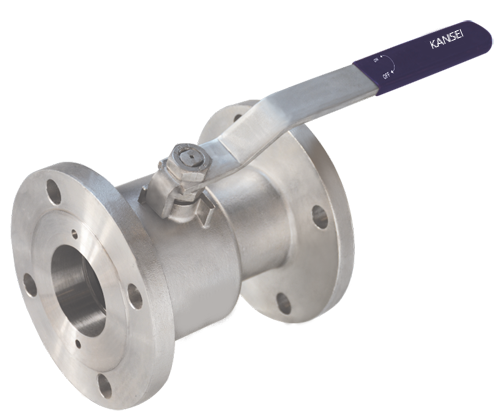

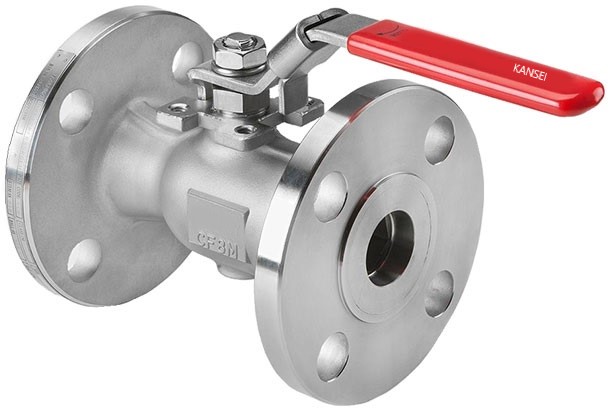

Model K1: One piece, Fire safe-antistatic design, Reduced bore, Flange end
(150#, 300#)

One Piece design features eliminates any possible and potential leak paths. Inserts holds the internal assembly in position. This creates a positive metal to metal sealing between body and insert which eliminates the leakage through flange. Ideally suitable for use in oil and gas production, refining and chemical applications. Body material and wetted trim components confirms to NACE standard MR 0175. Fire safe and Anti-static design where Hazardous areas with handling of flammable fuels, gases or chemicals are in use.

Technical Data :

  • Size Range: DN 50(2") – 200(8")
  • Pressure rating : ASME Class 150 to 300
  • Temperature range : Upto 260 deg. C
  • Seat : PTFE / Carbon Reinforced PTFE
  • End Connections : Flanged ASME B16.5
  • With & Without ISO PAD
Valve size ØA ØB C D Stem Connection Top Flange
DN Bore 150# 300# C to T 150# 300# E F K H X G Keyway No. of Holes Hole Dia PCD
50 38 150 165 47 178 216 89 277 112 19 X 12.7 N/A 4 M8 70
80 63 190 210 85 203 282 103 427 158 22 X 15.9 N/A 4 M10 102
100 76 230 255 97 229 305 114 427 170 22 X 15.9 N/A 4 M10 102
150 102 280 320 124 267 403 133 625 220 Ø32 10 X 10 4 M12 125
200 150 345 380 159 292 419 161 966 255 Ø32 10 X 10 4 M12 125

All dimensions are in mm.

Notes :

  • F = Handle dimension when the handle is in the extended position.
  • H = Diameter of the stem connection.
  • G = Dimension across the stem flats.
  • Dimensions are nominal to ± 1mm.

Standard Trims :

Class Body Material Insert Material Seat Ball Material Stem Material Body Seal Wrench
150 WCB WCB PTFE CF8 304 S/S PTFE MS
150 WCB WCB PTFE CF8M 316 S/S PTFE MS
150 CF8M CF8M PTFE CF8M 316 S/S PTFE SS
300 WCB WCB Carbon R'PTFE CF8M 316 S/S PTFE MS
300 CF8M CF8M Carbon R'PTFE CF8M 316 S/S PTFE SS

General Notes :

  • Customization and Automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Torque and Other Details.
