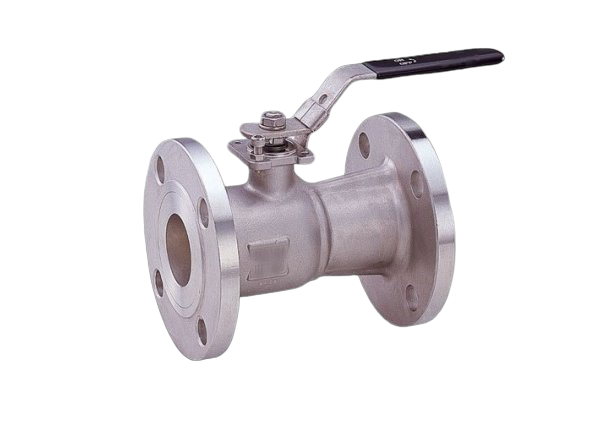

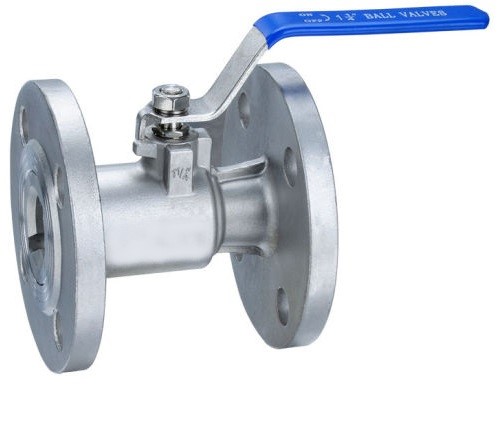

Model K2: One/Two Piece, Fire Safe-Antistatic design, Full bore Flange end
(150#,300#)

One Piece body from DN 15 to DN 40 and Two-piece design from DN 50 to DN 200 valve size. Ideally suitable for use in oil and gas production, refining and chemical applications. Body material and wetted trim components confirms to NACE standard MR 0175. Fire safe and Anti-static design where Hazardous areas with handling of flammable fuels, gases or chemicals are in use.

Technical Data :

  • Size Range: DN 15 – DN 40 (One piece), DN 50 – DN 200 (Two piece)
  • Pressure rating: ASME Class 150 & 300
  • Temperature range: Up to 260 deg. C
  • Seat: PTFE / Carbon Reinforced PTFE
  • End Connections: Flanged ASME B16.5
  • With & Without ISO PAD
Valve size ØA ØB C D E Stem Connection Top Flange
DN Bore 150# 300# C to T 150# 300# 150# 300# F K H X G Keyway No. of Holes Hole Dia PCD
15 14 89 95 26 108 140 56 56 137 101 9.5 X 6.3 N/A 4 7 60
20 19 98 117 32 117 152 57 57 155 107 14.3 X 9.5 N/A 4 7 70
25 25 108 124 37 127 165 60 60 155 110 14.3 X 9.5 N/A 4 7 70
40 38 127 156 47 165 190 87 87 277 110 19 X 12.7 N/A 4 M8 70
50 50 152 165 66 178 216 75 93 227 121 19 X 12.7 N/A 4 M8 70
65 63 178 190 85 190 241 89 107 427 160 22 X 15.9 N/A 4 M10 102
80 76 190 210 97 203 283 95 116 427 170 22 X 15.9 N/A 4 M10 102
100 102 230 254 129 229 305 99 135 625 220 Ø32 10 X 10 4 M12 125
150 151 317 332 159 394 403 181 186 966 255 Ø32 10 X 10 4 M12 125
200 201 408 381 199 457 502 229 N/A N/A N/A Ø35 10 X 8 4 M12 125

All dimensions are in mm.

Notes :

  • F = Handle dimension when the handle is in the extended position.
  • H = Diameter of the stem connection.
  • G = Dimension across the stem flats.
  • Dimensions are nominal to ± 1mm.

Standard Tirms :

Class Body Material Insert Material Seat Ball Material Stem Material Body Seal Wrench
150 WCB WCB PTFE CF8 304 S/S PTFE MS
150 WCB WCB PTFE CF8M 316 S/S PTFE MS
150 CF8M CF8M PTFE CF8M 316 S/S PTFE SS
300 WCB WCB Carbon R'PTFE CF8M 316 S/S PTFE MS
300 CF8M CF8M Carbon R'PTFE CF8M 316 S/S PTFE SS

General Notes :

  • Customization and Automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Torque and Other Details.
