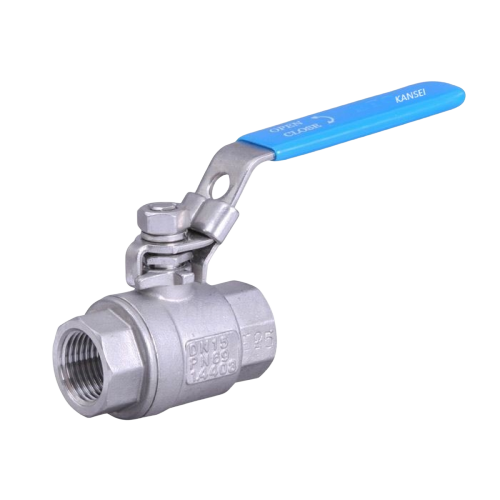

Model K4: One Piece Full, Bore Screw end (150#)

Design Std. As per ISO 17292 & BS 5351
End Connection Screwed End
Testing & Std. As per API 598 / ISO 5208
Size, 150# 15 mm to 50 mm (1/2" to 2")

BILL OF MATERIAL

Sr. No. Description Material
1 Body WCB / CF8 / CF8M
2 Cap WCB / CF8 / CF8M
3 Ball CF8 / CF8M
4 Steam SS304 / SS316
5 Gland SS304 / SS316
6 Seat Ring PTFE / GFT /CFT
7 Body Seal PTFE / GFT /CFT
8 Gland Packing PTFE / GFT /CFT
9 Gland Nut MS/SS304
10 Lever Nut MS/SS304
11 Lever MS/SS

Dimensions 150#

Size NB F/F Thread Type
15 12.5 58.8 BSP/NPT
20 19.0 68.5 BSP/NPT
25 25.0 76.5 BSP/NPT
32 32.0 90.0 BSP/NPT
40 38.0 100.0 BSP/NPT
50 50.0 118.0 BSP/NPT

All dimensions are in mm

General Notes :

  • Customization and Automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Torque and Other Details.
