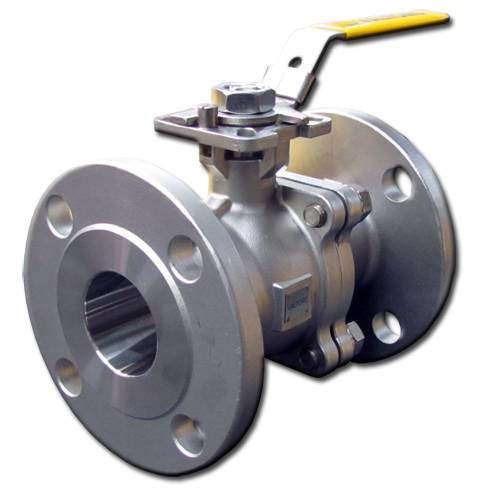

Model K7: Two Piece, Full Bore, Flange end (150#, 300#)
×
![]()
| Design Std. |
As per ISO 17292 & BS 5351 |
| End Connection |
Flanged End |
| Testing Std. |
As per API 598 or ISO 5208 |
| Size 150# & 300# |
15 mm to 300 mm (1/2" to 12") |
BILL OF MATERIALS
| Sr. No. |
Description |
Material |
| 1 |
Body |
CI / WCB / CF8 / CF8M |
| 2 |
Adaptor |
CI / WCB / CF8 / CF8M |
| 3 |
Ball |
CF8 / CF8M |
| 4 |
Stem |
SS304 / SS316 |
| 5 |
Gland |
SS304 / SS316 |
| 6 |
Seat Ring |
PTFE / GFT / CFT |
| 7 |
Body Seal |
PTFE / GFT / CFT |
| 8 |
Gland Packing |
PTFE / GFT / CFT |
| 9 |
Stem Seal |
PTFE / GFT / CFT |
| 10 |
Gland Nut |
MS / SS304 |
| 11 |
Lever Nut |
MS / SS304 |
| 12 |
Lever |
MS / SS |
| 13 |
Stud |
MS / SS304 |
| 14 |
Stud Nut |
MS/SS304 |
| 15 |
Stud Washer |
MS/SS304 |
| 16 |
Lever Sleeve |
PVC |
DIMENSIONS 150#
| Size |
Dia D |
PCD |
F/F |
| 15 |
90 |
60.5 |
108 |
| 20 |
100 |
70 |
117 |
| 25 |
110 |
79.5 |
127 |
| 40 |
125 |
98.5 |
165 |
| 50 |
150 |
120.5 |
178 |
| 65 |
180 |
139.5 |
191 |
| 80 |
190 |
152.5 |
203 |
| 100 |
230 |
190.5 |
229 |
| 150 |
280 |
241.5 |
267 |
| 200 |
345 |
298.5 |
292 |
| 250 |
405 |
362 |
330 |
| 300 |
485 |
432 |
356 |
DIMENSIONS 300#
| Size |
Dia D |
PCD |
F/F |
| 15 |
95 |
66.5 |
140 |
| 20 |
115 |
82.5 |
152 |
| 25 |
125 |
89 |
165 |
| 40 |
155 |
114.5 |
190 |
| 50 |
165 |
127 |
216 |
| 65 |
190 |
149 |
241 |
| 80 |
210 |
168.5 |
283 |
| 100 |
255 |
200 |
305 |
| 150 |
320 |
270 |
403 |
| 200 |
380 |
330 |
419 |
| 250 |
445 |
387.5 |
457 |
| 300 |
520 |
451 |
502 |
All dimensions are in mm.
General Notes :
- Customization and Automation as per customer requirements.
- Certificate of compliance to EN10204 Type 3.1 as standard.
- Safety stock as per customer requirements.
- 100% factory tested and inspected valves as per standard.
- Other trims also available as per customer requirements.
- Support to customes for other product requirements from sources.
- Consult to Factory for Torque and Other Details.
