Model KMS: Two Piece, Metal Seated (150#, 300#)

Kansei product KMS (Two-piece metal seated ball valve) in metal seated design as an additional option to our soft seated full port flanged series. This option increases the temperature rating to 750°F (399°C) and enhances wear resistance, while maintaining the proven safety and reliability of existing valves.

Technical Data :

    • Size Range: DN 15 (1/2”) – DN 200 (8”)
    • Pressure: ASME Class 150 & 300
    • Temperature range: Up to 400 deg. C
    • Seat : SS 304 / SS316
    • End Connections : Flanged ASME B16.5
    • With ISO PAD
Design Std. As per ISO 17292 & BS 5351
End Connection Flanged End
Testing Std. As per API 598 or ISO 5208
Size 150# & 300# 15 mm to 300 mm (1/2" to 12")

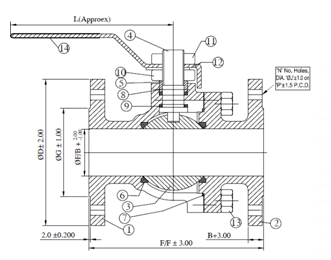

BILL OF MATERIALS

Sr. No. Description Material
1 Body CI /WCB / CF8 / CF8M
2 Cap CI / WCB / CF8 / CF8M
3 Ball CF8 / CF8M
4 Stem SS304 / SS316
5 Gland SS304 / SS316
6 Seat Ring SS304 / SS316
7 Body Seal PTFE / GFT / CFT
8 Gland Packing PTFE / GFT / CFT
9 Stem Seal PTFE / GFT / CFT
10 Gland Nut MS / SS304
11 Lever Nut MS / SS304
12 Lever MS / SS
13 Stud & Nut Ms / SS304
14 Lever Sleeve PVC
15 End Cap PVC

DIMENSIONS 150#

Size Dia D PCD F/F
15 90 60.5 108
20 100 70 117
25 110 79.5 127
40 125 98.5 165
50 150 120.5 178
65 180 139.5 191
80 190 152.5 203
100 230 190.5 229
150 280 241.5 267
200 345 298.5 292
250 405 362 330
300 485 432 356

DIMENSIONS 300#

Size Dia D PCD F/F
15 95 66.5 140
20 115 82.5 152
25 125 89 165
40 155 114.5 190
50 165 127 216
65 190 149 241
80 210 168.5 283
100 255 200 305
150 320 270 403
200 380 330 419
250 445 387.5 457
300 520 451 502

All dimensions are in mm.

General Notes :

  • Customization and Automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Torque and Other Details.
