Double Offset High Performance Butterfly Valve Wafer, Lug and Flange

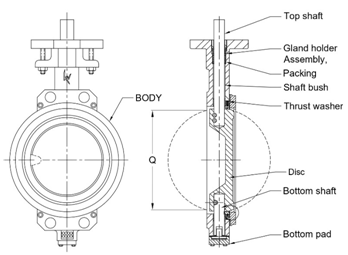

Model KHP W - Size: 2” (50 mm) to 36” (900 mm) :

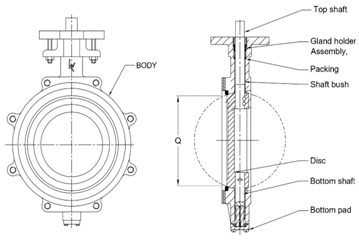

Model KHP L -Size: 2” (50 mm) to 36” (900 mm) :

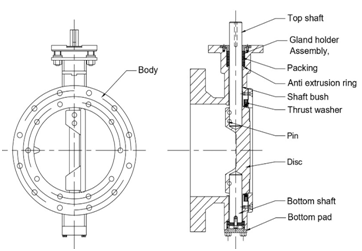

Model KHP F -Size: 2” (50 mm) to 36” (900 mm) :

Features and Benefits :

• Actuator/Gearbox mounting flange is standardized as per ISO 5211.
• Lugged body has drilled and tapped (matric or imperial) options as per ANSI, 150# and 300#.
• Two piece shaft design to increase disc efficiency as well higher Cv Value
• Operating with Lever, Gear, Pneumatic, Electric etc.
• Consult to Factory for Torque and other details.
• Customization and trims as per customer requirement.
• All dimensions are in mm and subject to change.
• Valve shape is for reference only.
• Q is the disc chordal dimension at valve face for disc clearance into pipe of equipment.
• Actuator mounting flange is in accordance to ISO 5211.
• Automation as per customer requirement.
• Consult to factory for other information.
