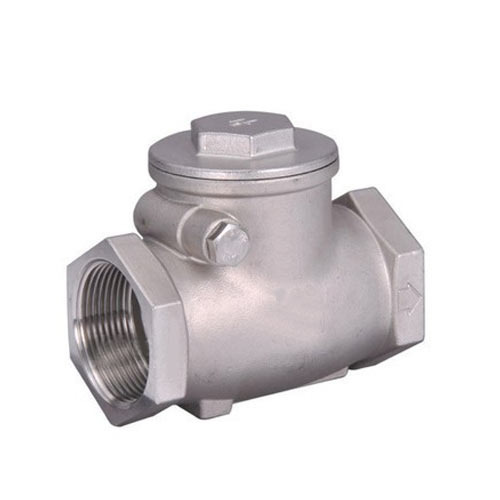

Model K42: CHECK VALVE / NON RETURN VALVE, Screw End (PN16)

Design Std. As per API 602 / ASME B16.34
Testing Std. As per API 598
End Connection Screw end
Size 10 mm to 80 mm, PN16

Dimensions PN16

Size L A
10 50 9.53
15 60 12.7
20 70 19
25 80 25.4
30 95 31.75
40 105 38.1
50 130 50.8
65 160 63.5
80 185 76.2

All dimensions are in mm.

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
