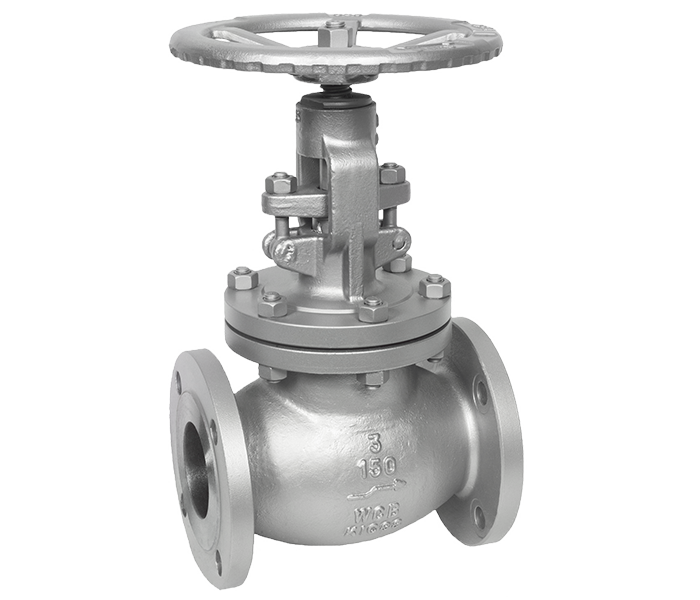

Model K76: Globe Valve - Flanged End (150#, 300#)

Design Std. As per BS 1873 / ASME B 16.34
End Connection Flanged End
Testing & Std. As per API 598 or ISO 5208
Size, 150# 25 mm to 300 mm (1” to 12”)
Size, 300# 50 mm to 300 mm (2” to 12”)

Bill Of Material

Sr. No. Description Material
1 Body WCB / CF8 / CF8M
2 Body seat SS410 (13% CR)/CF8/CF8M
3 Disc WCB +13% CR STEEL
4 Disc washer 13% CR STEEL
5 Stem SS410 / SS304 / SS316
6 Disc Stem Nut 13% CR STEEL
7 Gasket SPW SS304 GRAPHITE FILL
8 Bonnet WCB/CF8/CF8M
9 Stud ASTM A193 Gr. B7
10 Stud Nut ASTM A194 Gr. B2H
11 Back Seat Bush SS410/SS304/SS316
12 Spacer 13% CR STEEL
13 Packing GRAPHITE
14 Eye Bolt MS/SS
15 Eye Bolt Nut MS/SS
16 Gland SS410/SS304/SS316
17 Hand Wheel MALLEABLE IRON
18 Hand Wheel Nut MS
19 Yoke Sleeve EN8

Dimensions 150#

Size Dia D PCD F/F
25 110 79.5 127
40 125 98.5 165
50 150 120.5 203
65 180 139.5 216
80 190 152.5 241
100 230 190.5 292
150 280 241.5 406
200 345 298.5 495
250 405 362 622
300 485 432 698

Dimensions 300#

Size Dia D PCD F/F
50 165 127 267
65 190 149 292
80 210 168.5 318
100 255 200 356
150 320 270 444
200 380 330 559
250 445 387.5 622
300 520 451 711

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
