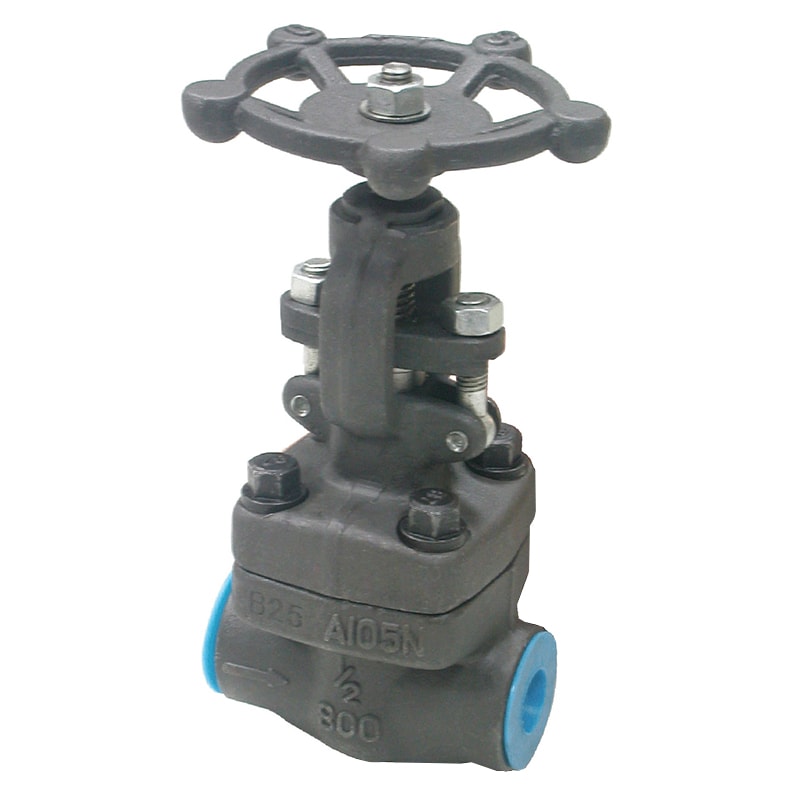

Model K77: GLOBE VALVE, Screw End (800#)

Design Std. As per BS 5352 / ASME B 16.34
End Connection Screw End
Testing & Std. As per API 598 or ISO 5208
Size, 800# 15 mm to 50 mm (1/2” to 2”)

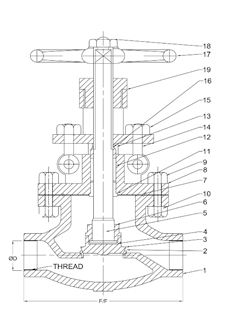

Bill Of Material

Sr. No. Description Material
1 Body WCB / CF8 / CF8M
2 Body seat SS410 (13% CR)/CF8/CF8M
3 Disc WCB +13% CR STEEL
4 Disc washer 13% CR STEEL
5 Stem SS410 / SS304 / SS316
6 Disc Stem Nut 13% CR STEEL
7 Gasket SPW SS304 GRAPHITE FILL
8 Bonnet WCB/CF8/CF8M
9 Stud ASTM A193 Gr. B7
10 Stud Nut ASTM A194 Gr. B2H
11 Back Seat Bush SS410/SS304/SS316
12 Spacer 13% CR STEEL
13 Packing GRAPHITE
14 Eye Bolt MS/SS
15 Eye Bolt Nut MS/SS
16 Gland SS410/SS304/SS316
17 Hand Wheel MALLEABLE IRON
18 Hand Wheel Nut MS
19 Yoke Sleeve EN8

Dimensions 800#

Size F/F B
15 85 21.7
20 92 27.1
25 106 33.8
30 122 42.5
40 127 48.6

All dimensions are in mm.

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
