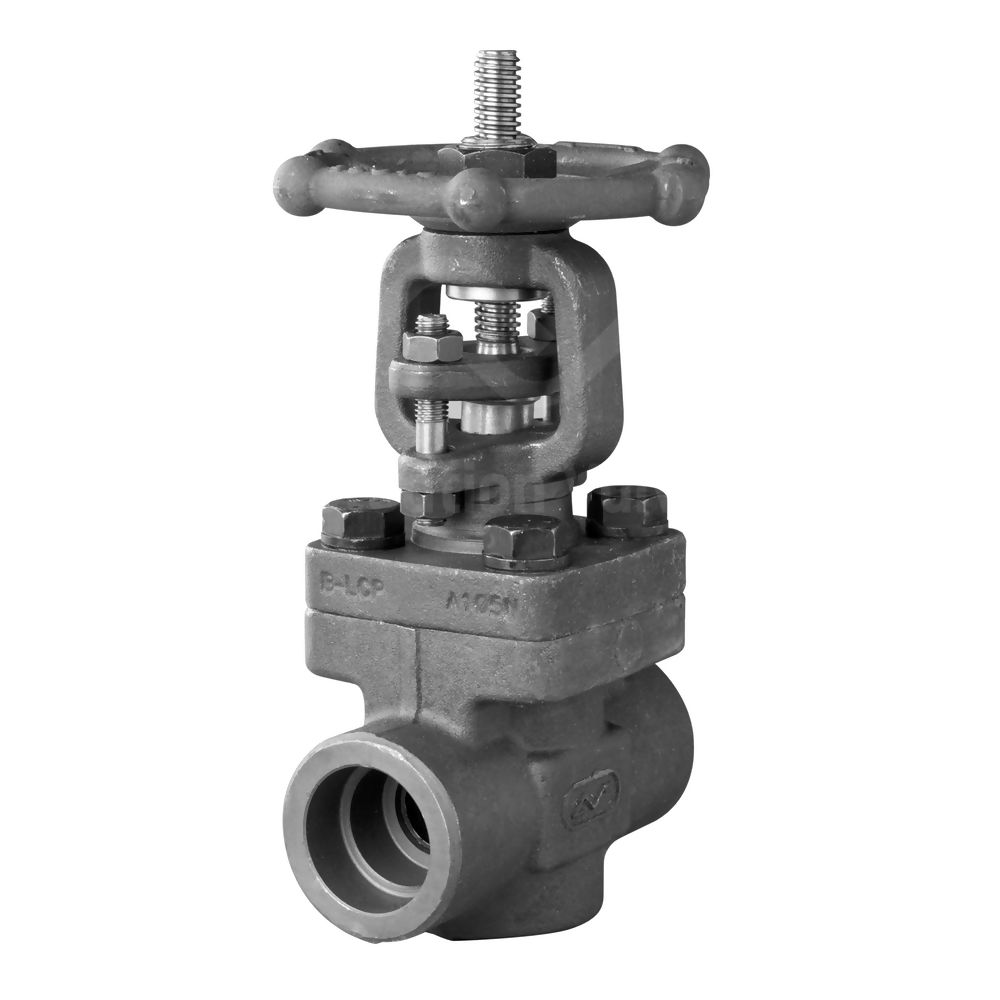

Model K73: GATE VALVE, Socket weld (800#)

Design Std. As per BS 1414
End Connection Threaded End
Testing & Std. As per API 598 / ISO 5208
Size, 150# & 300# 15 mm to 80 mm (1/2" to 3")

Bill Of Material

Sr. No. Description Material
1 Body WCB / CF8 / CF8M
2 Bonnet WCB / CF8 / CF8M
3 Wedge WCB (13% CR) / CF8 / CF8M
4 Seat Ring SS410 (13% CR) / CF8 / CF8M
5 Stem SS410 / SS304 / SS316
6 Gland SS410 / SS304 / SS316
7 Yoke Sleeve SS410 / SS304 / SS316
8 Back Seat Bush CS/CF8/CF8M
9 Gasket EN8
10 Gland Packing MS/SS
11 Bonet Stud MALLEABLE IRON
12 Bolt MS
13 Hand wheel SPW SS304 GRAPHITE FILLED
14 Hand wheel Nut GRAPHITE

Dimensions 800#

Size F/F B
15 51 62
20 55 66
25 63 78
30 71 85
40 73 94
50 83 101
60 108 127
80 117 143

All dimensions are in mm.

General Notes :

  • Customization and Automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.
